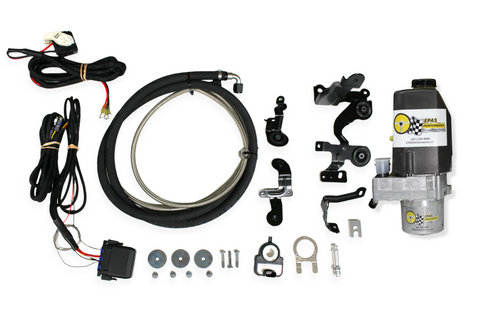

INCLUDED IN KIT:
- EPAS Performance Hydroelectric Pump
- Universal mounting bracket
- High pressure sending hose
- Low pressure return hose
- Pre-wired control module
- Angle sensor
HOW IT WORKS:
Our new system has a program that works with an angle sensor and CAN protocol. Our converter talks to the pump via the angle sensor, ramping up the systems pressure as needed. There is no noticeable delay or drop in pressure when input at the steering wheel is exerted.
Our system includes 6’ of high-pressure sending hose, 6’ of low pressure return hose and the power cords are 10’ in length. An oil cooler can be added for racing applications. The wiring harness is essentially plug and play, and only requires a hot ignition source, and full battery power. The systems draw is anywhere between 1Amp to 45Amps, spending most of its time in the lower amp range.
Maximum pressure of the unit is rated at 1900PSI @5GPM and the absolute maximum length of the pressure hose and return lines is 17’.
The installation of this system should be done by a professional mechanic or a very knowledgeable amateur.Install Manual Informational Video
The product images shown may not be an exact representation of the actual product.
